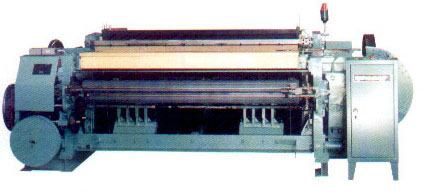

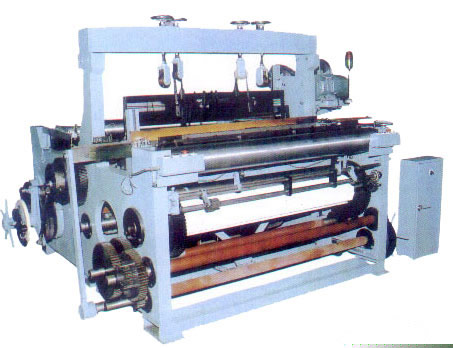

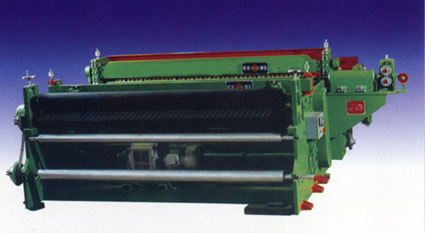

Shuttless Weaving Machine

TWT-B2

TW-1600A

Main Parameter

I. Width of fabric: max .1600mm II. Thickness of fabric:

30-400mesh(square holes gauge) - 2800 mesh (special gauge)

III. Crank shaft rotating speed: 72 rpm IV. Power of motor: 4 KW

Rotating speed of motor: 1420 rpm

V. Total weight: 3200 kgs VI. Total measurement: 2930 x 3150 x 1270mm

TW-1600B

Main Parameter

Scope of weaving: max .1600mm Scope of mesh:

Square holes gauge: mesh 10-100/inch Special mesh: mesh 40-350/inch

Crank shaft rotating speed: 53 r/m Power of motor: 4 KW

Total weight: 6155 kgs Total measurement: 2569 x 3535 x 1849mm
