Brickwork Reinforcement Mesh (Coil Mesh)



A high quality expanded galvanized or stainless steel mesh for use primarily as anti-cracking reinforcement in the construction of brick and block masonry. Coil mesh is available in a variety of widths to suit most wall constructions and is supplied coiled for ease of handling. Additional applications include strengthening cornices, low walls and balconies over door and window openings.

Size

Wt.
kg/m2

Thickness

Recommended
Application

63mm×100m

0.9

0.5

For 100mm Wall

120mm×100m

0.9

0.5

For 150mm Wall

175mm×100m

0.9

0.5

For 200mm Wall

225mm×100m

0.9

0.5

For 250mm Wall

* Stainless steel grade 304 2B and 316 are available.

Expanded metal reinforcement has numerous applications in all types of building where extra strength and stability is required, as in footings and parapets etc,. or to localised stress areas.

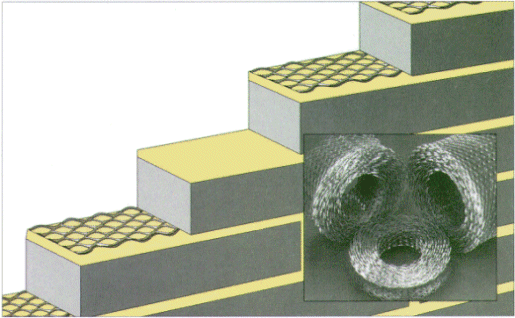

Expanded metal reinforcement is easy to handle, and when laid embedded in the mortar joining between brickwork or blockwork courses, forms an integral structure of great tensile strength which assists in the resistance, vibrations and thermal changes. The range of reinforcement coils satisfies most wall thickness, laid on the mortar bed with 25mm clearance to the outside face of the wall and lapped at least 75mm, if joining lengths. The reinforcement is then embedded completely and for most applications, every third course is sufficient.
