Disc filters - Introduction

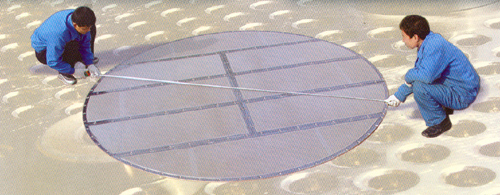

Filter Media: Filter medium for Disc Filters is multi-layer sintered wire cloth, with a rating range from 0.5 to 200¦Ìm, in a diameter from 200mm to 3000mm. Disc filters with multi-layer sintered wire cloth as filter medium, enjoy good strength, accurate filter rating, long life-span and repeatedly cleaning.

Materials: Standard material of disc filters is SUS316L. Other metals like Nickel alloy or Titanium alloy are also available at customers request.

Application: Disc filters are ideal filter fittings for three-in-one filtration ( filtering, washing and drying ) in pharmaceutics, food, chemical industries and polymers. Disc filters work as a complete unit or in parts.




Filter Fitting

This kind of filter fitting is mainly used in obtaining the medicine particles in dry air, to reduce medicine loss and air pollution. It is also used in filtering of fluid in other conditions.

The major filter media are multi-layer stainless steel sintered wire mesh, SUS316L. Filtration rating is 0.5-200micron. Outside dimensions can be customized.

Features: Precise filtration rating, can be repeatedly cleaned and long term use. Double cylinder structure to increase the filtration area to the greatest extent.

Application: This kind of filter fitting finds popular uses in medicine, foodstuff, chemical industry, etc.
