Pleated filter elements - Specification: table 4-6



Pleated Filter Elements Series:

  • Filter Element Model: PF-D/L-R
  • PF-Pleated Filter Elements
  • D-Diameter
  • L-Length
  • R-Filter Rating

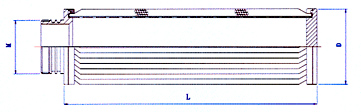

Model L(mm) D(mm) M Filter Area R(µm) Filter Media
PF-62/180-R 180 62 G1" 0.09M2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber web; stainless steel weaving wire cloth
PF-86/254-R 254 86 G2" 0.17M2
PF-86/381-R 381 0.20M2
PF-86/508-R 508 0.27M2
PF-86/760-R 760 0.58M2
PF-140/760-R 760 140 0.65M2

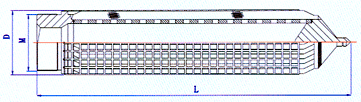

Model L(mm) D(mm) M Filter Area R(µm) Filter Media
PF-60/1432-R 1432 60 2"x12UN-2A 1.015M2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber web; stainless steel weaving wire cloth
PF-60/1241-R 1241 0.98M2
PF-60/1025-R 1025 0.81M2

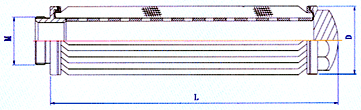

Model L(mm) D(inch) M Filter Area R(µm) Filter Media
PF-1.75/16.31-R 16.31" 1.75" 1.25"-
12UNF-
2A		 0.21M2 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75 Stainless steel sintered fiber web; stainless steel weaving wire cloth
PF-1.75/18.63-R 18.63" 0.23M2
PF-1.75/31-R 31" 0.43M2
PF-1.75/47-R 47" 0.54M2
