Disc filters - Specification



Disc Filters Series:

  • Disc Filter Model: DF-D-R
  • DF-Disc Filter
  • D-Diameter
  • R-Filter Rating


Model D(mm) Filter Area R(µm) Filter Media Structure
DF-600-R 60 0.28M2 5, 10, 15, 20, 30, 40, 60

Stainless steel multi-layer sintered wire cloth in thickness: 1.7mm
2.5mm
3.5mm

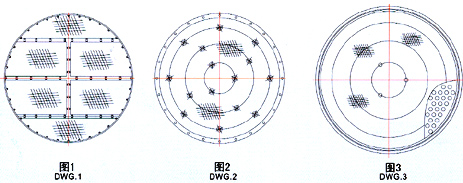

DWG.1 Combined type: Filter sheet and supporting sheet are welded together, then each unit is connected with bolts.

DWG.2 Monoblock type: Filter sheet is connected to supporting sheet with bolts or welded together, then welded with flange.

DWG.3 Monoblock type: Filter sheet is directly sintered with perforated sheet, then welded with flange.


DF-800-R 800 0.50M2
DF-1000-R 1000 0.79M2
DF-1200-R 1200 1.13M2
DF-1600-R 1600 2.01M2
DF-1800-R 1800 2.54M2
DF-2000-R 2000 3.14M2
DF-2300-R 2300 4.15M2
DF-2400-R 2400 4.52M2
DF-2600-R 2600 5.31M2
DF-2750-R 2750 5.94M2
DF-2800-R 2800 6.15M2
DF-3000-R 3000 7.06M2
